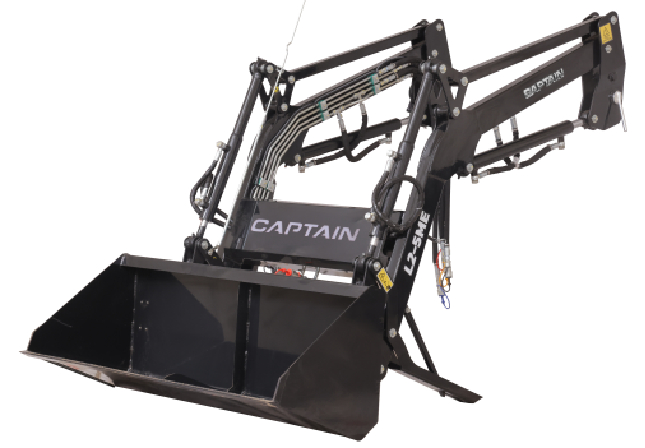

Loader
Our front loader attachment is designed for efficient material handling and lifting operations in agricultural and commercial applications. It is ideal for loading, unloading, and transporting materials such as soil, manure, gravel, feed, and harvested produce. Built for strength and durability, this loader offers smooth hydraulic operation, high lifting capacity, and precise control. Suitable for use on various terrains, it enhances productivity, reduces manual effort, and ensures safe, reliable performance. If you are searching for a high-quality tractor loader for sale or looking to invest in a complete front loader tractor for sale, this versatile equipment delivers the ultimate day-to-day work solution.

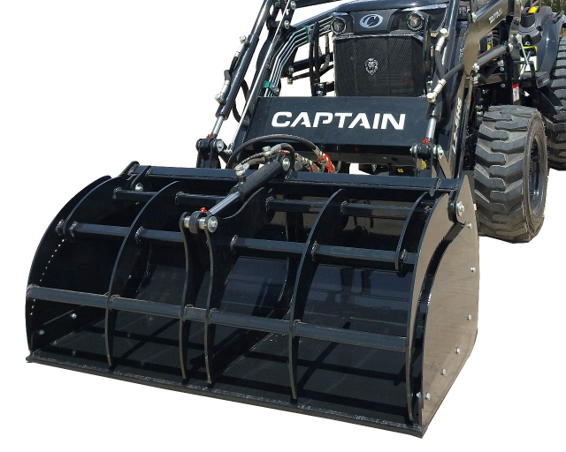

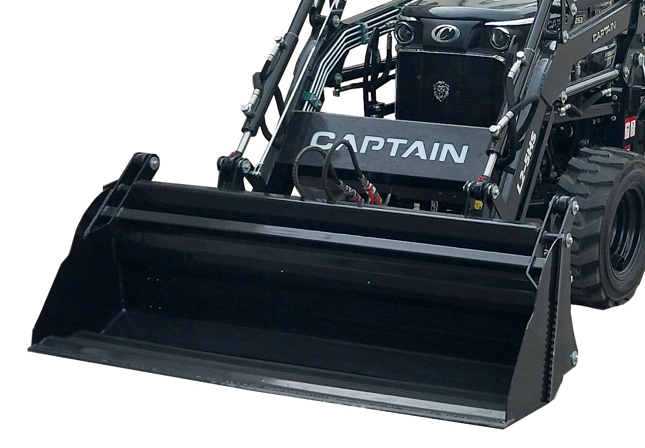

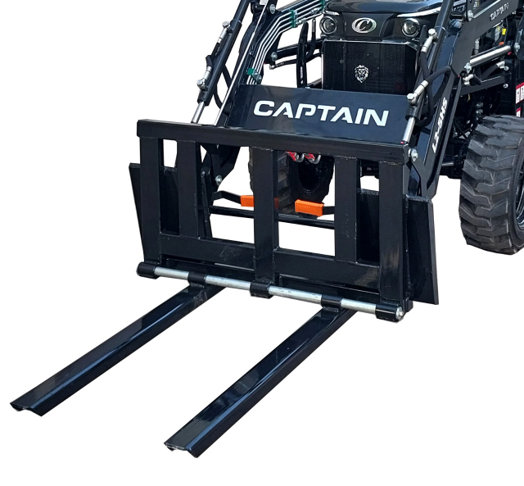

SSQA Loader Attachment Options
The Skid Steer Quick Attach (SSQA) Loader is designed for maximum versatility with a range of attachment options to suit different applications. Compatible with a variety of buckets, it enables efficient material handling, loading, lifting, grading, and utility work across diverse operating environments.
Technical Specifications
| Loader Model | L2-4HS – Non Self Levelling | L2-5HS – Mechanically Self Levelling |
| Pivot Pin Height at Maximum, inch (mm) | 92 (2334) | 92 (2334) |
| Height Bucket Parallel to Ground at Maximum, inch (mm) | 81 (2068) | 81 (2068) |
| Bucket Fully Tilted Bottom Height, inch (mm) | 67 (1705) | 67 (1705) |
| Bucket Reach When Fully Dumped, inch (mm) | Bonnet: 14 (361) / Hook: 10 (266) | Bonnet: 13 (325) / Hook: 9 (230) |
| Bucket Tilt (Dump) Angle | 50° | 52.5° |
| Bucket Forward Position from Front Wheel Center, inch (mm) | 60 (1534) | 60 (1534) |
| Bucket Roll Back Angle at Ground Level | 38° | 42° |
| Bucket (Parallel) Digging Depth Below Ground Level, inch (mm) | 5 (116) | 5 (116) |
| Bucket Fully Tilted Top Height, inch (mm) | 117 (2970) | 101 (2568) |
| Bucket Fully Tilted Dump Height, inch (mm) | 37 (939) | 39 (982) |
| Wheel Base, inch (mm) | 61 (1550) | 61 (1550) |
| Grill Guard | Standard | Standard |
| Lift Capacity (Pivot Pin, Max Height), lbs (kg) | 1102 (500) | 1102 (500) |
| Bucket Width, inch (mm) | 49 (1250) | 60 (1522) |
| Loader Weight Without Attachment, lbs (kg) | 661 (300) | 683 (310) |
| Standard Bucket Weight, lbs (kg) | 161 (73) | 181 (82) |
